Productdetails:
|
| Aantal terminals: | 320 pin | Aantal poorten: | 2*8 dubbele poorten |
|---|---|---|---|
| Geslacht: | Vrouwelijk | Isolatiemateriaal: | PBT |
| Materiaal van de contactspeld: | Fosforbrons | Vetjes type: | Drukken |
| Lichtvak: | zonder | Huidige beoordeling: | 1AMP |
| Het weerstaan van Voltage: | 500V voor één minuut | Isolatieweerstand: | 500mΩ min (bij DC500V) |
| Contactweerstand: | 35 mΩ max | Werktemperatuur: | -55°C aan +105°C |
| Type connector: | Kleine vorm-factor pluggable | Finish: | met een breedte van niet meer dan 15 mm |
| Gegevensnelheidsnelheid: | tot 4,25 GB/s | ||
| Markeren: | 320pin SFP connector female press-fit,stackable SFP connector 2x8 ports,female SFP connector |
||

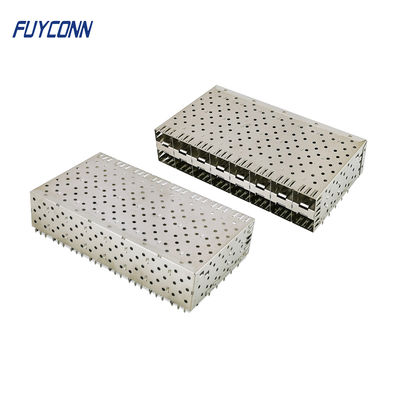

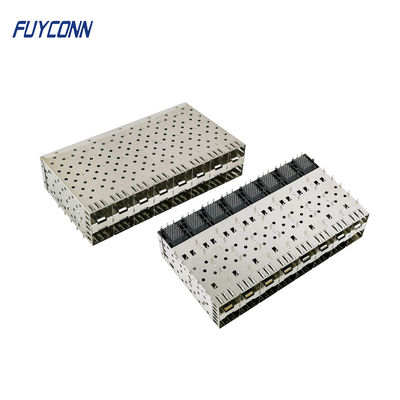

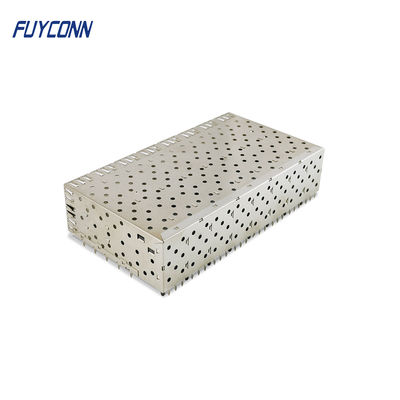

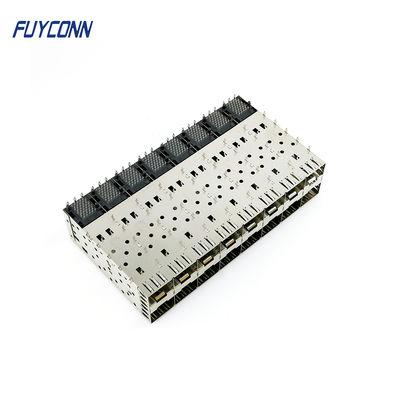

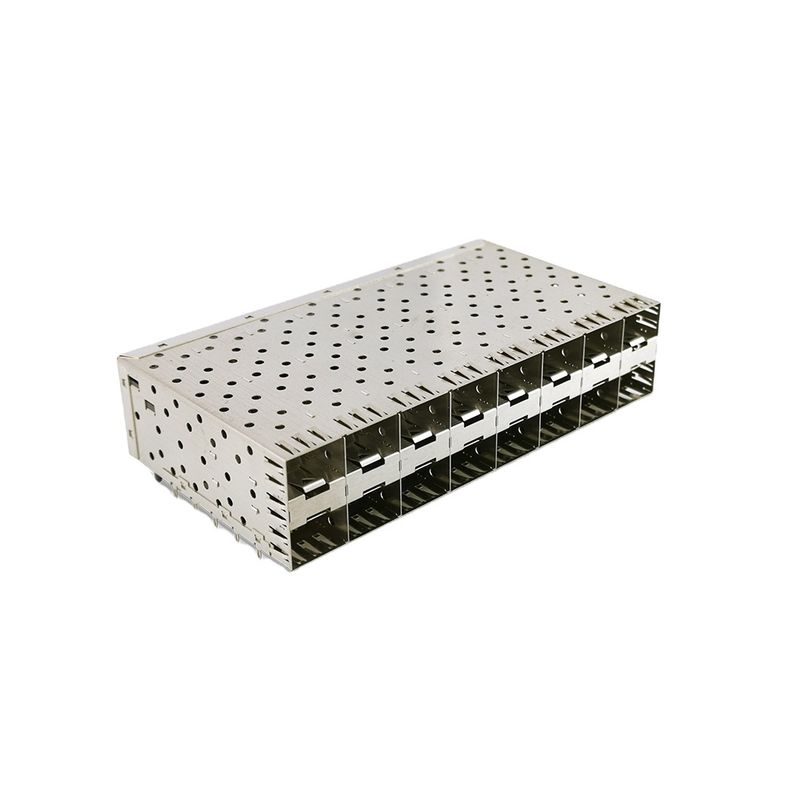

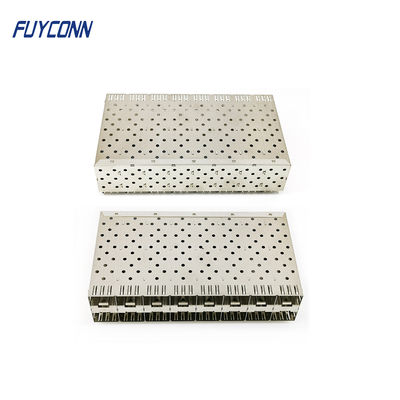

2-by-4 Multi-Port Female SFP Cage Assembly Connector with Light, 320pin Press-Fit Stackable 2x8 Ports SFP Connector Product Overview The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a primary optical transceiver for data communication. Introduced in the early 2000s to replace the GBIC connector, it complies with IEEE 802.3 and SFF-8472 specifications, handling up to 4.25Gb/s with greater port density. Its successor, SFP+ (SFP10),
