320pin 2x8 Ports SFP Connector Female Press-Fit with Light

Grote Afbeelding : 320pin 2x8 Ports SFP Connector Female Press-Fit with Light

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	FUYCONN
Modelnummer:	Fuysfp2054-49

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	100
Prijs:	$20

Contact

320pin 2x8 Ports SFP Connector Female Press-Fit with Light

beschrijving

Aantal pinnen:	320PIN	Aantal poorten:	2*8 dubbele poorten
Connector geslacht:	Vrouwelijk	Isolatiemateriaal:	PBT
Materiaal van de contactspeld:	Fosforbrons	Montagetype:	Press-fit
Lichtvak:	Ja	Huidige beoordeling:	1AMP
Het weerstaan van Voltage:	500V voor één minuut	Isolatieweerstand:	500mΩ min (bij DC500V)
Contactweerstand:	35 mΩ max	Werktemperatuur:	-55°C aan +105°C
Gegevensnelheidsnelheid:	Tot 10 GB/s (SFP+)	Finish:	met een breedte van niet meer dan 15 mm
Stapelbaar:	Ja
Markeren:	320pin SFP connector female press-fit , 2x8 ports SFP connector with light , press-fit SFP connector with warranty

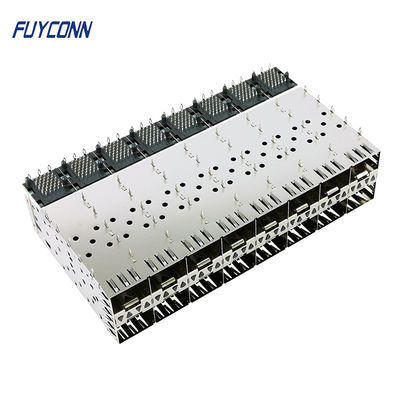

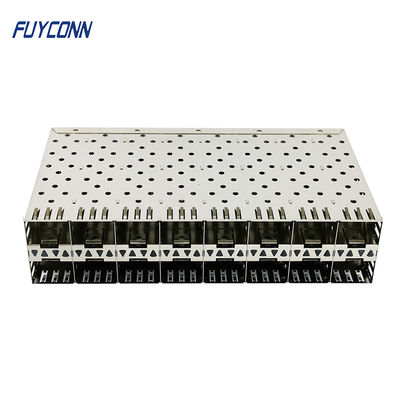

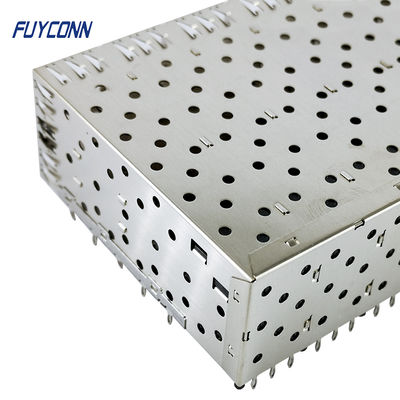

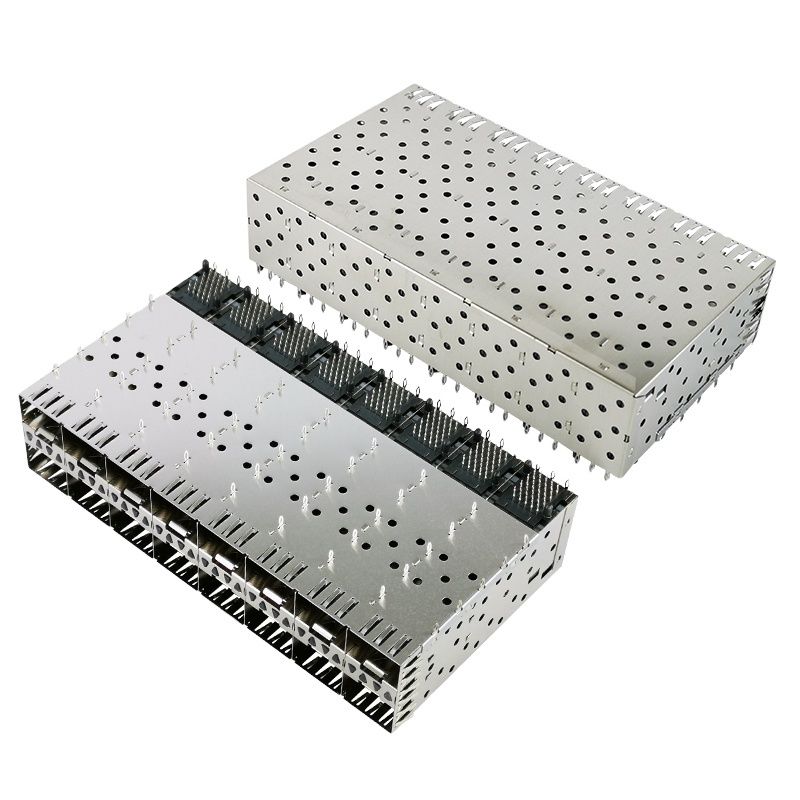

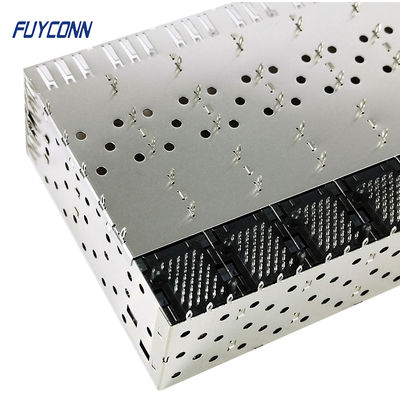

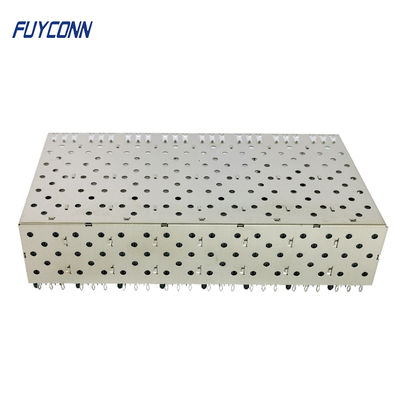

320pin Press-Fit Stackable 2x8 Ports SFP Connector with Light

SFP Cage Assembly 2-by-8 Multi-Port Female Connector

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is widely used in data communication systems. Introduced in the early 2000s to replace GBIC connectors, SFP connectors offer greater port density while handling up to 4.25Gb/s. These connectors support Gigabit Ethernet, Fibre Channel, SONET, and other communication standards.

The enhanced SFP+ version, introduced in 2006, supports data rates up to 10Gb/s while maintaining the same compact size. Both SFP and SFP+ connectors are available in copper and optical variants, making them versatile solutions for high-speed networking applications.

Product Features

Product Name:	SFP Connector
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Number of Positions:	320pin
Ports:	2×8 (16 Ports)
Contact Material:	Phosphor Bronze
Finish:	Nickel Silver
Insulation Material:	PBT
Lightpipe:	Included

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Applications

Networking equipment
Router/Switch systems
Data/Communications infrastructure
High-end servers
Telecommunications hardware
Fibre Channel and Gigabit Ethernet systems

Packaging & Shipping

Our products are securely packaged using:

Vacuum trays for protection
PE bags for moisture resistance
Sturdy boxes/cartons for shipping
PE bags with strips for added security

About Dongguan Fuyconn Electronics Co., Ltd

Established in 2004, we specialize in IT and communication connectors with over 1,000 models available. Our UL- and SGS-certified products comply with RoHS directives and maintain a defect rate below 0.5%. Our 5,000 square meter ISO-certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines.
