Productdetails:
|
| Contactmateriaal: | Messing | Woningmateriaal: | Metaal |
|---|---|---|---|
| Aantal terminals: | 320 pin | Aantal poorten: | 2*8 dubbele poorten |
| Isolatiemateriaal: | PBT | Materiaal van de contactspeld: | Fosforbrons |
| Mount type: | Drukken | Lichtvak: | zonder |
| Huidige beoordeling: | 1AMP | Het weerstaan van Voltage: | 500V voor één minuut |
| Isolatieweerstand: | 500mΩ min (bij DC500V) | Contactweerstand: | 35 mΩ max |
| Werktemperatuur: | -55°C aan +105°C | Gegevensnelheidsnelheid: | Tot 10 GB/s |
| Connector geslacht: | Vrouwelijke centronic schakelaar | ||
| Markeren: | SFP+ connector 16 port,SFP+ connector 320 pin,SFP+ connector EMI gasket |
||

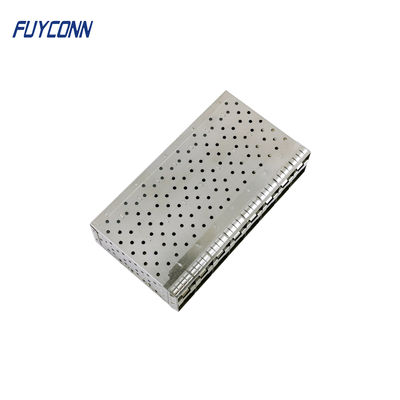

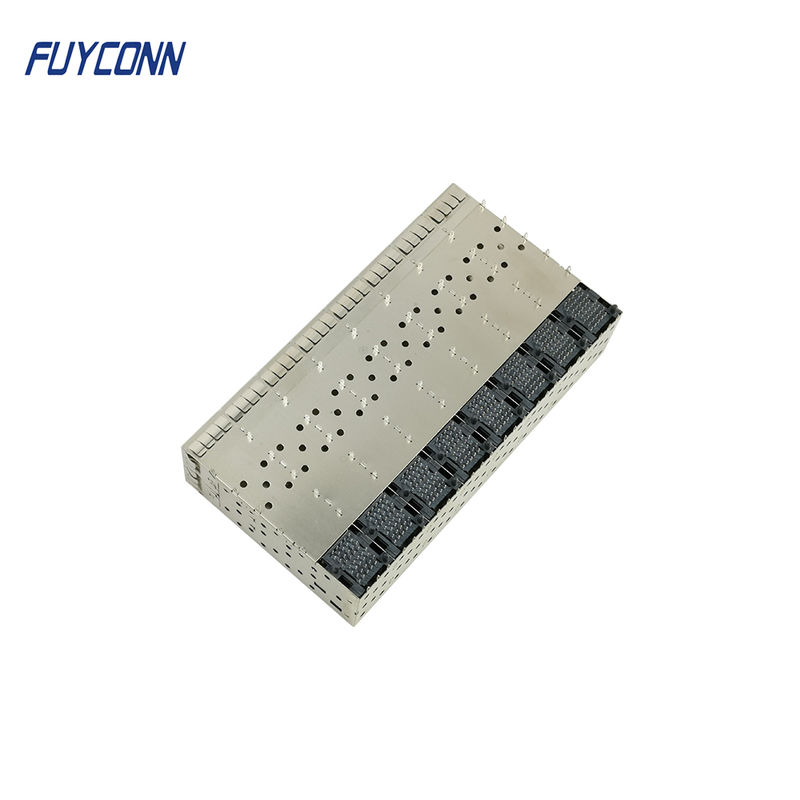

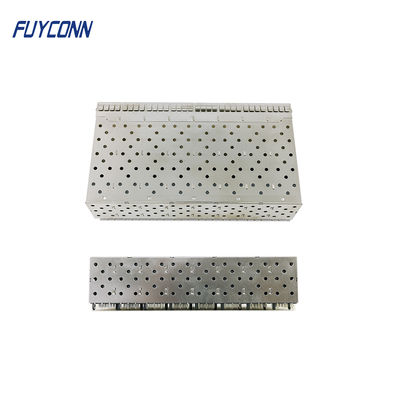

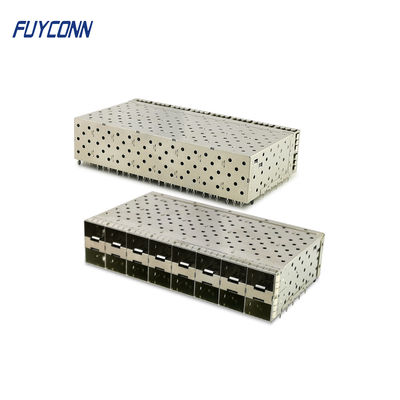

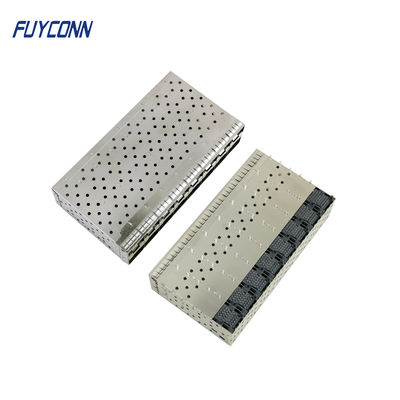

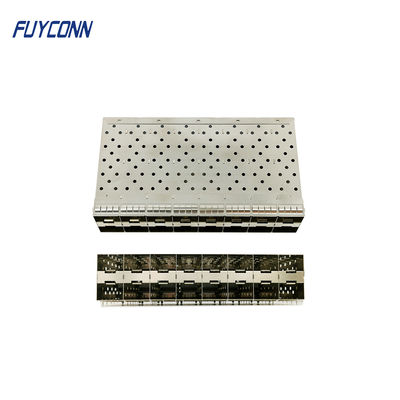

2x8 W/ EMI Gasket Integrate SFP+ Connector, SFP+ Series Connector 2x8 16 Port 320 Position Press Pin SFP Cage Assembly SFP+ Series Connector Overview The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is a major optical transceiver for data communication. Introduced in early 2000 to replace GBIC connectors, SFP connectors offer greater port density while handling up to 4.25Gb/s based on IEEE 802.3 and SFF-8472 specifications. They support
