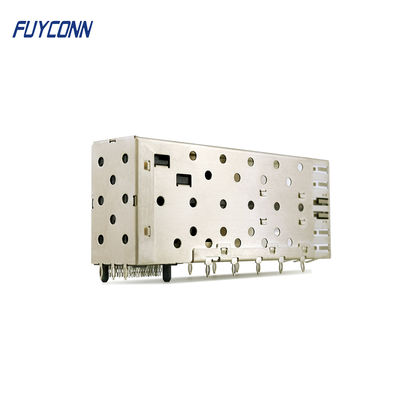

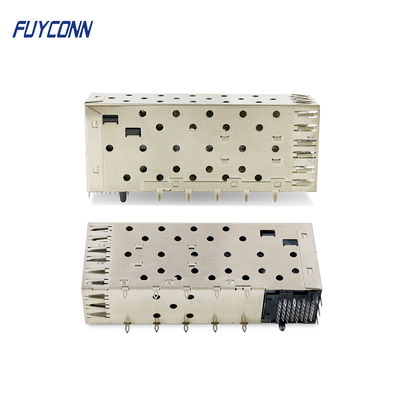

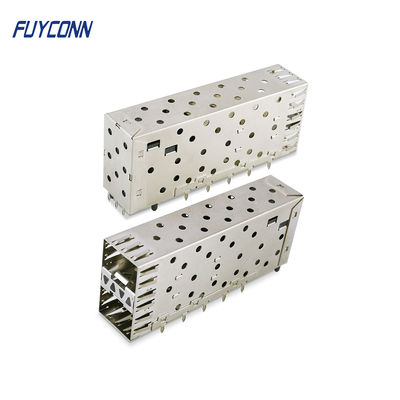

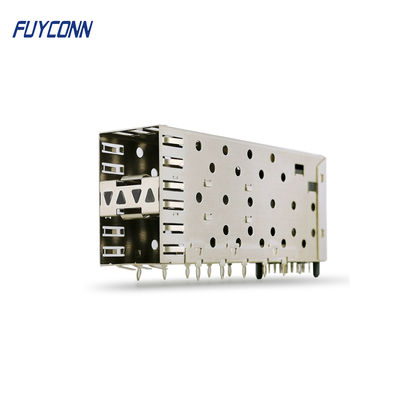

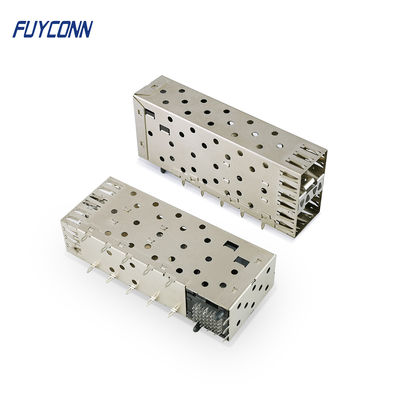

2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

Grote Afbeelding : 2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

Productdetails:

Plaats van herkomst:	Guangdong, China
Merknaam:	FUYCONN
Modelnummer:	Fuysfp2010-28

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	100
Prijs:	$15

Contact

2x1 Female SFP Connector 40 Pin with Light Pipe Press-Fit

beschrijving

Contactmateriaal:	Messing	Geslacht:	Wijfje, Wijfje
Terminal telling:	40 pin	Haventelling:	2*1 dubbele poorten
Kleur:	Nick Silver	Isolatiemateriaal:	PBT
Materiaal van de contactspeld:	Fosforbrons	Voettype:	Drukken
lichtpijp:	met lichtpijp	Huidige beoordeling:	1AMP
Het weerstaan van Voltage:	500V voor één minuut	Isolatieweerstand:	500mΩ min (bij DC500V)
Contactweerstand:	35 mΩ max	Werktemperatuur:	-55°C aan +105°C
Gegevensnelheidsnelheid:	tot 4,25 GB/s
Markeren:	2x1 female SFP connector with light pipe , 40 pin press-fit SFP connector , female SFP connector with press-fit

2x1 Female SFP Connectors with Light Pipe Press-Fit Stackable Multi-Port Housing Shielded Cage Connector

Product Overview

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is widely used in data communication systems. Introduced in early 2000 to replace GBIC connectors, SFP connectors offer greater port density while supporting up to 4.25Gb/s according to IEEE 802.3 and SFF-8472 specifications. The SFP+ variant, introduced in 2006, extends this capability to 10Gb/s while maintaining the same form factor.

Key Features

Product Name:	SFP Connector
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Contact Type:	Small Form-factor Pluggable
Number of Positions:	40pin
Ports:	2x1 (2 Ports)
Contact Material:	Phosphor Bronze
Finish:	Nickel Silver
Insulation Material:	PBT
Lightpipe:	Included

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Applications

Networking equipment
Router/Switch
Data/Communications
High-end servers
Telecommunications
Switches
Telecommunications hardware
Fibre Channel and Gigabit Ethernet

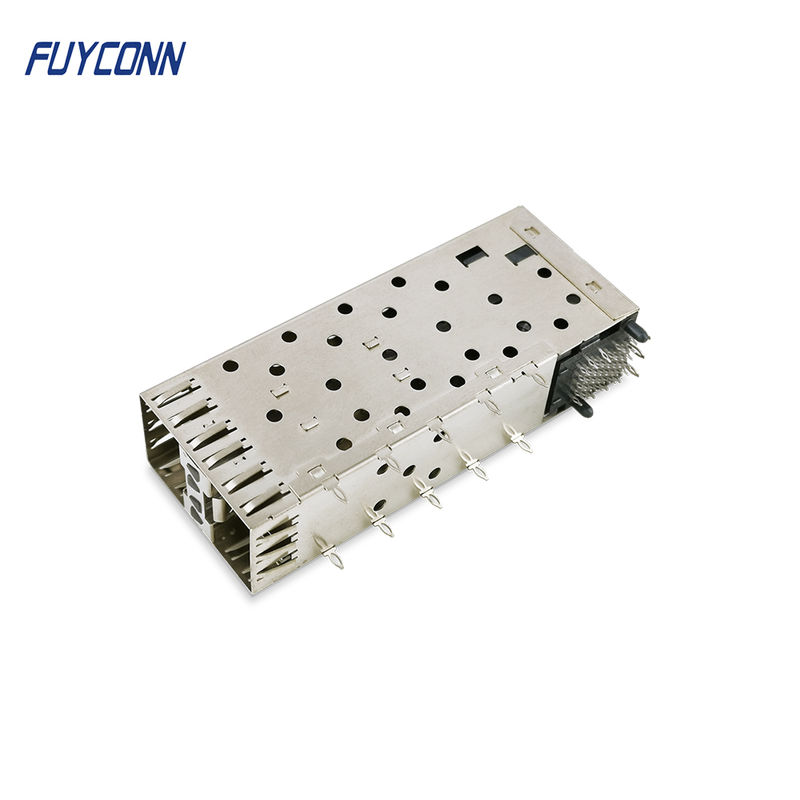

Product Images

Packaging & Shipping

Vacuum Tray
PE Bag
Strong bags/boxes/cartons
PE Bag + Strips
